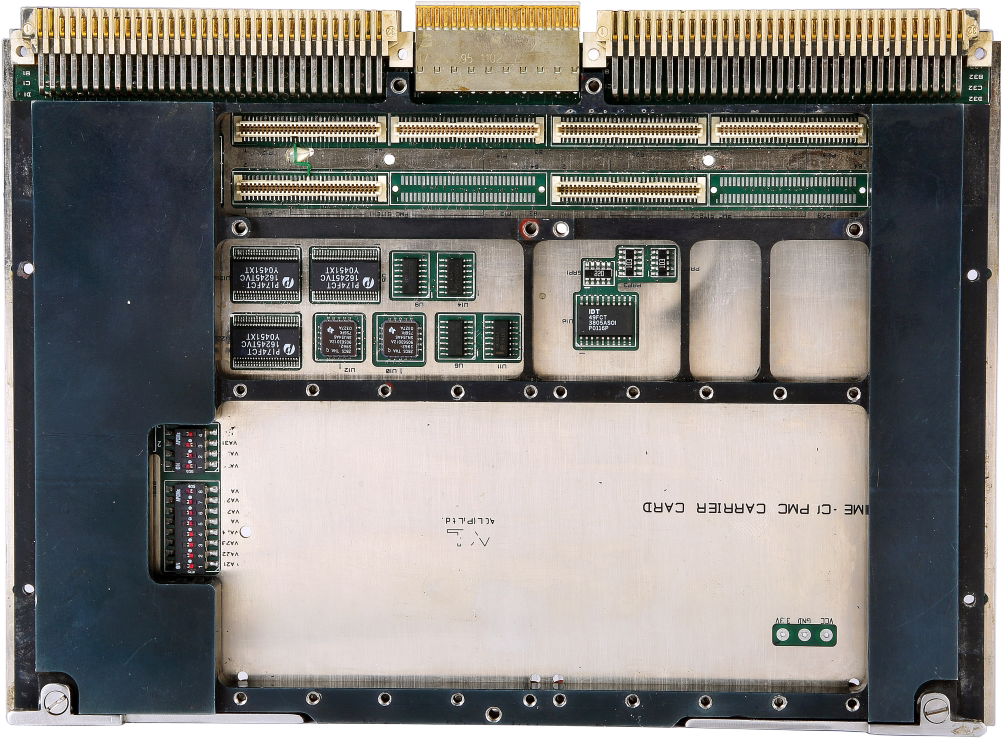

The VME CCPMC Carrier card is a 6U Conduction Cooled VME based card. VME interface is provided through Tundra’s Universe-II bridge. The card has two PMC sites, which are meant for target only operation. The PCI bus interface to access the PMC sites is provided by Universe-II. Universe-II can generate memory, I/O and configuration cycles on PCI bus. The board requires 5V power supply. Universe-II is provided with two clock frequencies 64 MHz and 33.33 MHz. The PMC sites are provided with 33.33 MHz clock frequenc
-
PCI Ver 2.1 Compliant
-
VME interface through Industry Standard Tundra’s Universe-II
-
Supports A32/A24/A16 addressing
-
PMC I/O routing as per VITA 35-199x draft standard
-
Capable of routing the PMC interrupts on to VME bus
-
Switches provided to access Universe II registers in A32 space
-
PMC :
-
2 sites for Conduction cooled PMC as per VITA 20-1992
-
Backplane :VME Bus
-
Address: A32/A24/A16
-
Data : D32 / D16 / D08
-
Connectors : P0 (95pins), P1 (160Pins), P2 (160pins) VME 64X Connectors on the backplane
-
I/O Routing : As per the draft standard VITA 35-199x. PMC1 I/O routing to P0 connector, PMC2 I/O routing to P2 connector
-
Input voltage : 5V ± 10%
-
PCB Size : 6U (233.35 mm x 160 mm) as per IEEE1101.1
-
No. of Layers : 10 Layers
-
PCB material : FR4
-
Heat sink : Aluminium with Black Anodization
-
Power Consumption : 2.8W ~ 3.5W (Typical)
-
Operating Temperature: -40°C to +85°C
