PCIExpress(PCIe)
APOORVA PCIe Based BCRTMT 4 Node Card
PCIe bus based Apoorva Multi Node MIL-STD-1553B add-on card which can be hosted on any PC (Pentium/i3/i5/i7) PCIe bus interface providing up to Four independently configurable buses. Each Bus provides simultaneously dual redundant BC/RT/MT or BC, RT & MT (based on ACL’s APOORVA-1553B Core)nodes conforming to MIL-STD-1553B Notice-2.
the design supports a single PC hosting multiple modules -limitations being: available system free slots and computational power of PC host. Thus, the APOORVA-PCI-FOUR-BCRTMT-1553B is an excellent choice for dynamic real-time avionics simulations. The on-board double buffered dual port memory facilitates parallel message preparation & transfers, increasing the effective throughput.
The APOORVA-1553B Based BCRTMT comes with Bus Libraries, powerful C-callable library routines to access the bus at various levels of abstraction, hardware complexities being transparent to the user. Higher level functions like data formatting, logging, display etc. The performance of APOORVA-1553B Based BCRTMT is far superior to solutions offered by others around the globe.Apoorva provides a unique facility to the user to enable or disable the messages in the Frame.
Technical Specifications
-
Up to Four independently configurable buses. Each Bus provides simultaneously dual redundant BC/RT/MT or BC, RT & MT nodes(based on options chosen) conforming to MILSTD-1553B Notice-2.on PC free PCIe lane x1 slot.
-
Supports full MIL-STD-1553B Notice-2.
-
Supports all 1553B message formats and mode-codes.
-
On board time-tag counter.
-
RT Sub-address circular buffers to support bulk data transfers.
-
Optional separation of RT broadcast data.
-
Each channel supports double buffered dual ported 7.5 K X 16 bit memory for preparation and transfer.
-
Programmable RT address.
-
High performance.
-
Two on-board timers.
-
Typical Inter-message gap of 10 micro seconds. Optionally 4.20 micro seconds.
-
Scalable architecture supporting intra system expandability.
-
Supports multiple bus simulation on single PC.
-
Ideal for real-time avionics simulation.
-
Built in test S/W for diagnostics.
-
Bus Libraries: Powerful C-callable routines to support BC, RT & MT functions.
-
Unprecedented Flexibility: Minor Frame Time Programmable in steps of 1.0 milli seconds accurately along with Minor frame messages loadable in hardware itself to provide accurate real-time performance.
-
Parmon: Parametric Monitoring Software, a user friendly Menu driven Software is available.
-
Powerful message debugging facility.
-
Supported drivers for Windows 2000, Windows XP, Windows 7 and Linux.
-
Optional : Real Time OS Libraries.
Memory
| As BC
|
7.5 K words |
| As RT
|
7.5 K words |
| As MT
|
16 K words |
| Circular Buffer
|
15 K words |
With the APOORVA-1553B Based BCRTMT cards, the following Errors can be injected to verify the LRUs and other systems functioning:
| Manchester errors |
Bi-phase errors |
| Bit length errors |
Sync errors |
| Word count errors |
Gap time introduction etc. |
Bus Libraries
The APOORVA-1553B Based BCMRTMT PCIe bus based add-on card comes
with C-callable library functions/routines to utilize the resources of the card.
Ordering Information
-
APOORVA-PCIe-1553B-Single-BC/RT/MT:PCIe bus based MIL-STD-1553B single node Add-on card supporting BC/ RT/MT.
-
APOORVA-PCIe-1553B-Two- BC/RT/MT:PCIe bus based MIL-STD-1553B two node Add-on card supporting BC/ RT/ MT.
-
APOORVA-PCIe-1553B-Three- BC/RT/MT:PCIe bus based MIL-STD-1553B three node Add-on card supporting BC/ RT /MT.
-
APOORVA-PCIe-1553B-Four- BC/RT/MT:PCIe bus based MIL-STD-1553B four node Add-on card supporting BC/RT/MT.
-
APOORVA-PCIe-1553B-Single-BC,RT&MT:PCIe bus based MIL-STD-1553B single node Add-on card supporting BC, RT & MT (simultaneously).
-
APOORVA-PCIe-1553B-Two- BC,RT&MT:PPCIe bus based MIL-STD-1553B two node Add-on card supporting BC, RT & MT (simultaneously).
-
APOORVA-PCIe-1553B-Three- BC,RT&MT:PCIe bus based MIL-STD-1553B three node Add-on card supporting BC, RT & MT (simultaneously).
-
APOORVA-PCIe-1553B-Four- BC,RT&MT:PCIe bus based MIL-STD-1553B four node Add-on card supporting BC, RT & MT (simultaneously).

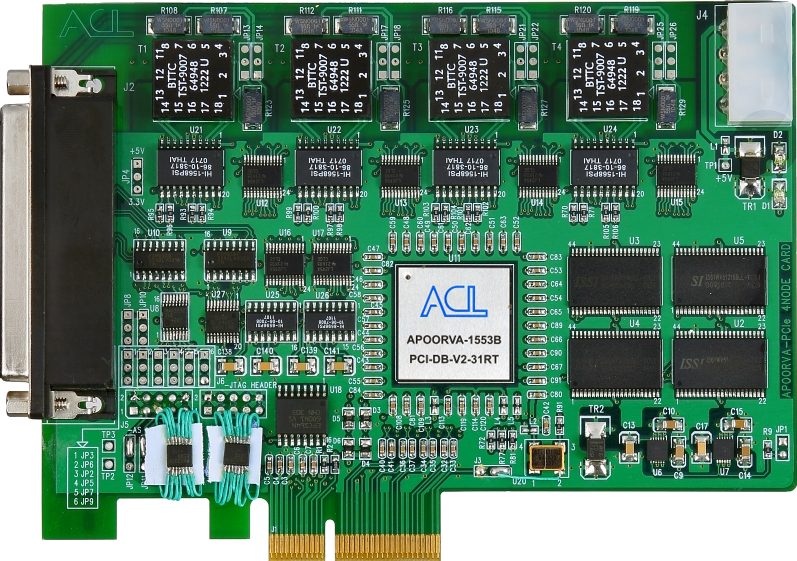

PCI Express(PCIe) APOORVA PCIe Based
MRTBCMT 4 Node Card
PCIe bus based Apoorva Multi Node MIL-STD-1553B add-on card which can be hosted on any PC (Pentium/i3/i5/i7) PCIe bus interface providing simultaneously Four buses each with dual redundant 31RTs, BC & MT (based on ACL’s Apoorva-1553B Core) nodes conforming to MIL-STD-1553B Notice-2. The design supports a single PC hosting multiple modules - limitations being: available system free slots and computational power of PC host
Thus, the APOORVA-1553B Based MRTBCMT is an excellent choice for dynamic real-time avionics simulations. The on-board double buffered dual port memory facilitates parallel message preparation & transfers, increasing the effective throughput.
The APOORVA-1553B Based MRTBCMT comes with Bus Libraries, powerful C-callable library routines to access the bus at various levels of abstraction, hardware complexities being transparent to the user. Higher level functions like data formatting, logging, display etc. The performance of APOORVA-1553B Based MRTBCMT is far superior to solutions offered by others around the globe.Apoorva provides a unique facility to the user to enable or disable the messages in the Frame.
Technical Specifications
-
Provides simultaneously up to Four buses each with dual redundant 31RTs, BC & MT (based on ACL’s APOORVA-1553B Core) conforming to MIL-STD-1553B Notice-2 on any PC free PCIe slot.
-
Supports full MIL-STD-1553B Notice-2.
-
Supports all 1553B message formats and mode-codes.
-
On board time-tag counter.
-
RT Sub-address circular buffers to support bulk data transfers.
-
Optional separation of RT broadcast data.
-
Each channel supports double buffered dual ported 7.5 K X 16 bit memory for preparation and transfer.
-
Programmable RT address.
-
High performance.
-
Two on-board timers.
-
Scalable architecture supporting intra system expandability.
-
Supports multiple bus simulation on single PC.
-
Ideal for real-time avionics simulation.
-
Built in test S/W for diagnostics.
-
Bus Libraries: Powerful C-callable routines to support BC, RT & MT functions.
-
Parmon: Parametric Monitoring Software, a user friendly Menu driven Software is available.
-
Powerful message debugging facility.
-
Unprecedented Flexibility: Minor Frame Time Programmable in steps of 1.0 milli seconds accurately along with Minor frame messages loadable in hardware itself to provide accurate real-time performance.
-
Supported drivers for Windows 2000, Windows XP, Windows 7 and Linux.
-
Optional : Real Time OS Libraries.
MEMORY
| As BC
|
7.5 K words |
| As RT
|
7.5 K words |
| As MT
|
16 K words |
| Circular Buffer
|
15 K words |
With the APOORVA-1553B Based MRTBCMT cards, the following Errors can be injected to verify the LRUs and other systems functioning:
| Manchester errors |
Bi-phase errors |
| Bit length errors |
Sync errors |
| Word count errors |
Gap time introduction etc. |
Bus Libraries
The APOORVA-1553B Based MRTBCMT PCIe bus based add-on card comes with C-callable library functions/routines to utilise the resources of the card
Ordering Information
-
APOORVA-PCIe-1553B-Single-BC,MRT&MT : PCIe bus based MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on one 1553B buses
-
APOORVA-PCIe-1553B-Two- BC,MRT&MT: PCIe bus based MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on two 1553B buses
-
APOORVA-PCIe-1553B-Three- BC,MRT&MT: PCIe bus based MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on three 1553B buses
-
APOORVA-PCIe-1553B-Four- BC,MRT&MT: PCIe bus based MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on four 1553B buses
