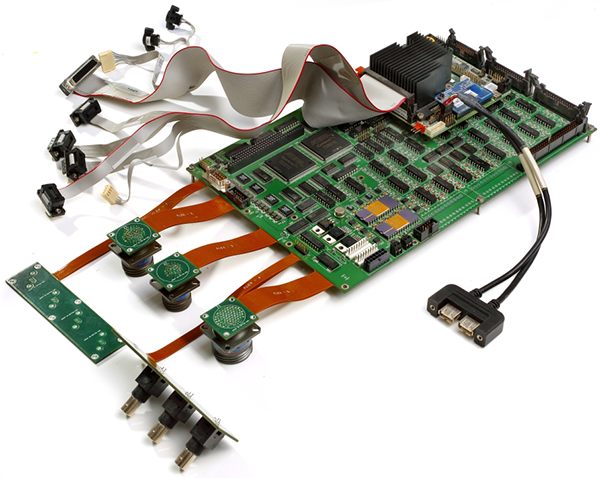

RG-DAS-II (Rugged Generic Data Acquisition System)

Specifications

PC/104 CPU Module :

  • →
     ATHENA-II CPU module
  • →
    PIII class, VIA Eden processor 800MHz
  • →
    256 MB on board Memory
  • →
    512 MB Flash Memory on Disk on chip or Solid State Module
  • →
    RT Linux Pro Operating System or Windows XP
  • →
    1 VGA, 1 Ethernet port Watchdog Timer : 0.15 to 2 Sec users programmable
  • →
     Operating Temp. : -40ºC to +85ºC

Analog Inputs :

  • →
      Channels : 30 single ended ADC resolution : 16 bit, <20 µSec
  • →
    Input Range (FS) : ±10V/20mA
  • →
     Input Impedance : >10K Features : SHA, Anti-aliasing/noise filter, over voltage protection, Auto zeroing, Testability.
  • →
    Overall Accuracy : Better than 0.1%of FS over entire
  • →
    operating temperature.

Analog Outputs

  • →
      ​ Output : ±10V (FS), for 16 bit & 12 bit
  • →
    Channels : Total -12 Nos. (16 Bit -04 Nos., 12 Bit - 08 Nos.)
  • →
    Features : Read-back, double buffering , Monotonic , Reset to zero via software
  • →
     Output current : ±5mA
  • →
    Output voltage swing : ±5mA Strap option to change this swing to ±0V DC FS.

 COM Ports (QUART) :

  • →
     No. of Ports : 3 RS232 ports 1 RS422 port
  • →
     Speed : >100kbps
  • →
    FIFO : 16Byte
  • →
    Between Thermal Plane and 5V GND : Open

 Digital Inputs :

  • →
       Type: Open Collector
  • →
    Inputs : 88 Channels Provision to read up to 24V
  • →
    Input < 8V guaranteed LOW Input > 16V guaranteed HIGH
  • →
    Over voltage Protections, transient
  • →
    Isolation : Opto Isolation Force HI,
  • →
    Force LO Testability

 Digital Outputs :

  • →
       Type : Relay Driver outputs
  • →
    Channels : 32 Nos.
  • →
     Load : 24V@200mA
  • →
    Testability : Read-back
  • →
    Isolation : Opto Isolation

 Absolute Encoder :

  • →
    Type : EnDat 2.2
  • →
    Channels : 2 Nos.

 CAN Controller :

  • →
     ​Type : CAN Master High Speed Maximum bit rate : 1 Mbit/sec
  • →
    No. of CAN nodes : 127 Nos. Max.
  • →
    Protocol : CAN 2.0B
  • →
    CAN frame type : Standard (11 bit identifier)
  • →
     Identifier Setting : By software
  • →
     Channels : 1 No.

 CAN Controller :

  • →
     ​Type : Incremental, Bidirectional
  • →
    Channels : 2 Nos.
  • →
    Pulses per Revolution : 128 Nos.
  • →
    Output Format : Dual Square Wave in Quadrature
  • →
     Interface : RS422

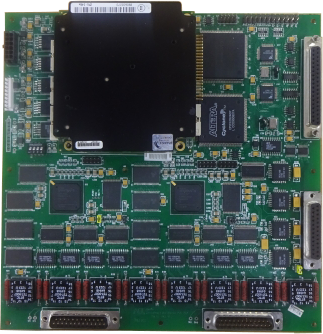

Mini RG-DAS

Specifications

  • →
    Missile Simulators.
  • →
    Launcher Interface Units.
  • →
    Test Consoles for Satellite Subsystems.
  • →
    Test-Jigs for testing On board Computers.
  • →
    Antenna Servo Control.
  • →
    Automatic Test Equipments.
  • →
    Flight Dynamic Simulators.
  • →
    Control and Data Acquisition.
  • →
    Surveillance Systems.
  • →
    Actuator Control Test Beds.
  • →
  • →
    Operating Temp. : -40ºC to +85ºC

ACL’s RG-DAS is a Generic Data Acquisition System, which can be configured to specific application requirements.

  • →
    Processor : Intel Pentium M 1.4GHz, 2MB L2 cache, 400MHz FSB.
  • →
    Multiple RT, BC & MT Simulation : 8 No. Supporting MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on One 1553B Bus.
  • →
    Single Function (BC/RT/MT) MIL-STD-1553B Simulation: 1 No.
  • →
    ARINC-429 : 8 Transmitters, 8 Receivers.
  • →
    COM Ports : 4x USB 2.0 ports.
  • →
    Ethernet Ports : Gigabit Ethernet (1000Mbps).
  • →
    RS-232 & RS-422 Channels : 3 Nos. of RS-232/RS-422 Ports configurable, 8 Nos. of RS-422 Ports.
  • →
    OS & Library Functions : Linux and RT-Linux: Library functions to support each of the resources will be provided. option to change this swing to ±0V DC FS.
