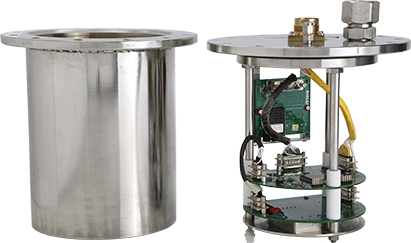

Fiber Optic Connectivity

Compliance to MIL-STD-461C & MIL-STD-810F
Fiber Optic Connectivity provides full duplex, Redundant, High Band width interface between Launch Controlling Station (LC) and the launcher interface unit for Various Applications with a separate distance of 800 meters.Both multimode and single mode converter boxes of 850nm/1310nm/1550nm wave length with FC/SC/ST Type Fiber interfaces are available. Differential Electrical interface is provided.

Specifications

Single Mode Converter Box Specifications

Optical Transceiver : Single Mode
Optical Wavelength : 850/1310/1550nm
Optical converter interface : FC/SC/ST
No. of channels : 2 Nos.
Electrical Interface : 13 pin circular connector , RS - 422
Power input : +5V DC
Optical Driving length : 2 Km
Optical power budget : 17db

Multi Mode Converter Box Specifications

Optical Transceiver : Multi Mode
Optical Wavelength : 850/1310/1550nm
Optical converter interface : FC/SC/ST
No. of channels : 2 Nos.
Electrical Interface : 13 pin circular connector, RS - 422
Power input : +5V DC
Optical Driving length : 2 Km
Optical power budget : 17db
