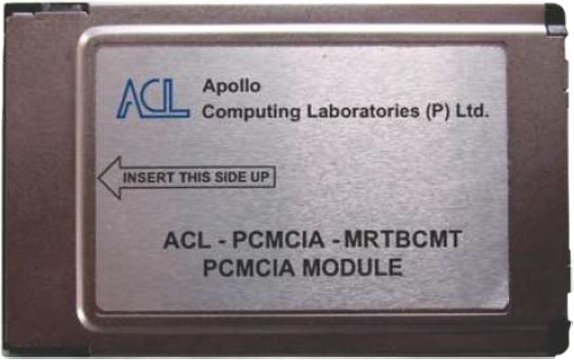

PCMCIA Based  APOORVA-1553B Single Node MRTBCMT PCMCIA Card

The APOORVA-1553B Based MRTBCMT is a PCMCIA PC Card form factor Type-II (Release 2.10 compatible) MILSTD-1553B module. The Module can be hosted by Note Book Computers (Pentium-III or higher configuration) having Type-II PCMCIA slots, providing simultaneously with dual redundant 31RTs, BC & MT (based on ACL’s Apoorva-1553B Core) nodes conforming to MIL-STD-1553B Notice-2.

The design supports a single Note Book Computer/Laptop hosting multiple modules - limitations being: available system free slots and computational power of Note Book PC host. Thus, the APOORVA-1553B Based MRTBCMT is an excellent choice for dynamic real-time avionics simulations. The on-board double buffered dual port memory facilitates parallel message preparation & transfers, increasing the effective throughput.

The APOORVA-1553B Based MRTBCMT comes with Bus Libraries, powerful C-callable library routines to access the bus at various levels of abstraction, hardware complexities being transparent to the user. Higher level functions like data formatting, logging, display etc. The performance of APOORVA-1553B Based MRTBCMT is far superior to solutions offered by others around the globe.The Module is also provided with Four RS-422 Channels.

Techincal Features

  • PCMCIA Type-II Release 2.10 Compliant.
  • Provides simultaneously with dual redundant 31RTs, BC & MT (based on ACL’s APOORVA-1553B Core) conforming to MIL-STD-1553B Notice-2 on one Note Book Computer system free PCMCIA slot.
  • Supports full MIL-STD-1553B Notice-2.
  • Supports all 1553B message formats and mode-codes.
  • On board time-tag counter.
  • RT Sub-address circular buffers to support bulk data transfers.
  • Optional separation of RT broadcast data.
  • Each channel supports double buffered dual ported 7.5 K X 16 bit memory for preparation and transfer. Programmable RT address.
  • High performance.
  • Scalable architecture supporting intra system expandability.
  • Supports multiple bus simulation on single Note Book Computer.
  • Ideal for real-time avionics simulation.
  • Built in test S/W for diagnostics.
  • Bus Libraries: Powerful C-callable routines to support BC, RT & MT functions.
  • Parmon: Parametric Monitoring Software, a user friendly Menu driven Software is available.
  • Powerful message debugging facility.
  • Unprecedented Flexibility: Minor Frame Time Programmable in steps of 1.0 milli seconds accurately along with Minor frame messages loadable in hardware itself to provide accurate real-time performance.
  • Typical Inter-message gap of 10 micro seconds.
  • Supported drivers for Windows 2000, Windows XP, Windows 7 and Linux.
  • Optional : Real Time OS Libraries.

MEMORY

As BC 7.5 K words
As RT 7.5 K words
As MT 16 K words
Circular Buffer 256 K words

With the APOORVA-1553B Based MRTBCMT module, the following Errors can be injected to verify the LRUs and other systems functioning:

Manchester errors Bi-phase errors
Bit length errors Sync errors
Word count errors Gap time introduction etc.

Bus Libraries

The Apoorva-PCMCIA-MRT-BC-MT-1553B based PCMCIA Bus Based add-on card comes with C-callable library functions/routines to utilise the resources of the card.

Ordering Information

APOORVA-PCMCIA-SINGLE-MRT-BC-MT-1553B: PCMCIA bus based MIL-STD-1553B Simulator / tester providing Simultaneous 31RTs, BC & MT on Single 1553B bus along with Four RS-422 Channels
* These variants are also available with ACL. Contact ACL for further details.

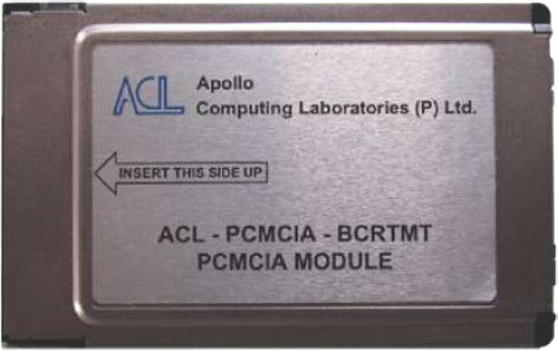

PCMCIA Based  APOORVA-1553B Single Node BCRTMT PCMCIA Card

The APOORVA-1553B Based BCRTMT is a PCMCIA PC Card form factor Type-II (Release 2.10 compatible) MIL-STD-1553B module. The Module can be hosted by Note Book Computers (Pentium-III or higher configuration) having Type-II PCMCIA slots, providing simultaneously with dual redundant BC/RT/MT or BC, RT & MT (based on ACL’s Apoorva-1553B Core) nodes conforming to MIL-STD-1553B Notice-2.

The design supports a single Note Book Computer/Laptop hosting multiple modules - limitations being: available system free slots and computational power of Note Book PC host. Thus, the APOORVA-1553B Based BCRTMT is an excellent choice for dynamic real-time avionics multiple bus simulations. The on-board double buffered dual port memory facilitates parallel message preparation & transfers, increasing the effective throughput.

The APOORVA-1553B Based BCRTMT Add-on card comes with Bus Libraries, powerful C-callable library routines to access the bus at various levels of abstraction, hardware complexities being transparent to the user. Higherlevel functions like data formatting, logging, display etc. The performance of APOORVA-1553B Based BCRTMT module is far superior to solutions offered by others around the globe.The Module is also provided with Four RS-422 Channels.

Techincal Features

  • PCMCIA Type-II Release 2.10 Compliant.
  • Provides simultaneously with dual redundant BC/RT/MT or BC, RT & MT (based on ACL’s APOORVA-1553B Core) on one Note Book Computer system free PCMCIA slot.
  • Supports full MIL-STD-1553B Notice-2.
  • Supports all 1553B message formats and mode-codes.
  • On board time-tag counter.
  • RT Sub-address circular buffers to support bulk data transfers.
  • Optional separation of RT broadcast data.
  • Each channel supports double buffered dual ported 7.5 K X 16 bit memory for preparation and transfer.
  • Programmable RT address.
  • High performance.
  • Scalable architecture supporting intra system expandability.
  • Supports multiple bus simulation on single Note Book Computer.
  • Ideal for real-time avionics simulation.
  • Built in test S/W for diagnostics.
  • Bus Libraries: Powerful C-callable routines to support BC, RT & MT functions.
  • Parmon: Parametric Monitoring Software, a user friendly Menu driven Software is available.
  • Powerful message debugging facility.
  • Unprecedented Flexibility: Minor Frame Time Programmable in steps of 1.0 milli seconds accurately along with Minor frame messages loadable in hardware itself to provide accurate real-time performance.
  • Typical Inter-message gap of 10 micro seconds.
    Supported drivers for Windows 2000, Windows XP, Windows 7 and Linux.
  • Optional : Real Time OS Libraries.

MEMORY

As BC 7.5 K words
As RT 7.5 K words
As MT 16 K words
Circular Buffer 15K words

With the APOORVA-1553B Based BCRTMT module, the following Errors can be injected to verify the LRUs and other systems functioning:

Manchester errors Bi-phase errors
Bit length errors Sync errors
Word count errors Gap time introduction etc.

Bus Libraries

The Apoorva-PCMCIA-MRT-BC-MT-1553B based PCMCIA Bus Based add-on card comes with C-callable library functions/routines(Library Compatibility: With Windows NT 4.0 and VC++ 6.0) to utilise the resources of the card.

Ordering Information

APOORVA-PCMCIA-SINGLE-BC-RT-MT-1553B: PCMCIA bus based MIL-STD-1553B Simulator / tester providing Simultaneous BC, RT & MT on Single 1553B bus along with Four RS-422 Channels* These variants are also available with ACL. Contact ACL for further details.
