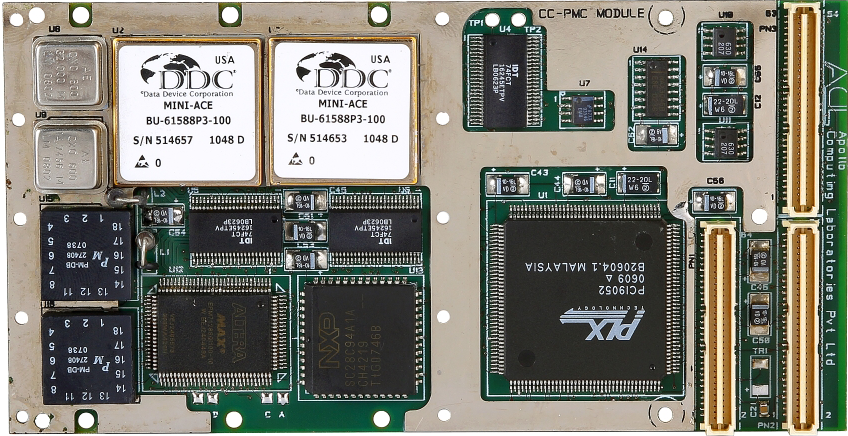

CCPMC-1553B: CCPMC Module with Two MIL-STD-1553B Nodes along with Four RS-422 Channels & Eight DIOs

Overview

BISA-CCPMC-1553B PMC module is based on DDC’s BU-61588/BU-61688 Advanced Communications Engine (ACE), and Philips SC28C94 serial controller devices.
BC/RT/MT Bus Controller (BC), Remote Terminal (RT) and Monitor Terminal (MT) modes are independently supported on each channel of the BISA-PMC-1553B module.

Introduction

The BISA-CCPMC-1553B provides two dual-redundant MIL-STD-1553B interfaces along with Four RS-422 and an eight bit TTL parallel I/O ports on a PMC/CCPMC module .It complements ACL's latest generation of PowerPC-750 based SBC with dual PMC/CCPMC sites.The BISA-CCPMC-1553B comes with VxWorks libraries. To provide full testability, the BISA-CCPMC-1553B is supplied with Built-In-Test (BIT). BIT software routines, which provides diagnostics to give confidence in the sub-system integration.The product is available in standard air-cooled level as well as Conduction Cooled versions.

CCPMC-1553B: CCPMC Module with Three MIL-STD-1553B Nodes along with Eight RS-422 Channels

Overview

CCPMC-1553B-3Node PMC module is based on DDC’s Total-ACE and Spartan-6 FPGA.
BC/RT/MT Bus Controller (BC), Remote Terminal (RT) and Monitor Terminal (MT) modes are independently supported on each channel of the PMC-1553B-3Node module.

Introduction

The CCPMC-1553B-3Node provides three dual-redundant MIL-STD-1553B interfaces along with Eight RS-422 channels on a PMC/CCPMC module.It complements ACL's latest generation of PowerPC-750 based SBC with dual PMC/CCPMC sites.The CCPMC-1553B-3Node comes with VxWorks libraries.To provide full testability, the CCPMC-1553B-3 Node is supplied with Built-In-Test (BIT). BIT software routines, which provides diagnostics to give confidence in the sub-system integration.The product is available in standard air-cooled level as well as Conduction Cooled versions.

Main Features

Technical Specs

  • ⇨
     32-bit/33 MHz PMC card
  • ⇨
    Three dual redundant BC/RT/MT MIL-STD-1553B interfaces
  • ⇨
    Transformer coupled interfaces
  • ⇨
    Supports PCI interrupts
  • ⇨
    External BC trigger / RT status brought out
  • ⇨
    Eight RS-422 channels
  • ⇨
    Current and temparature monitoring
  • ⇨
    VxWorks Libraries
  • ⇨
    Available in Air-cooled and Conduction Cooled Versions

BC / RT / MT Operation

  • ⇨
    Each channel may be independently programmed for BC, RT, or RT/MT mode. This option makes use of the Total-ACE device to provide full support for all modes of operation. When used with Total-ACE, 4K words of memory is available for message preparation and double buffering etc.

  • ⇨
    BC mode includes advanced features such as bulk-data transfers, frame auto-repeat, automatic retries on the same channel or bus switching on alternate channel, programmable gap times etc

  • ⇨
    RT mode supports all advanced features including single buffering, double buffering, sub-address circular buffering, programmable command illegalisation and Busy etc.

  • ⇨
    MT modes allows all standard features including word monitoring, selective message monitoring etcSimultaneous RT / monitor mode is also supported as it is required some times for backup BC terminals

Hard-warable and Software Programmable RT Addressing

  • ⇨
    The RT address of each channel on the CCPMC-1553B-3Node may be set by Library functions. RT address is also settable through Hardware settings as per notice-2 features. In this mode the software addressing is disabled.

BC Trigger / RT Status

  • ⇨
    An external trigger line is provided for each channel to allow hardware control of the BC. Messages may be pre-programmed, and then the BC can start from the point the trigger signal is activated.

  • ⇨
    In RT mode this line becomes a sub-system status line, used to indicate a failure within the sub-system.

RS-232/RS-422 Channels

  • ⇨
    The CCPMC-1553B-3Node module is supported with Eight RS-422 channels. A number of software routines are provided in VxWorks environment, to access and utilize each and every features of on-board serial controller chip.

Software Support

  • ⇨
    ACL provides CCPMC-1553B-3Node with driver and library software for VxWorks operating system environment to assist in software development.
  • ⇨
    On requirement basis libraries and driver software for other Operating Systems can be provided.
