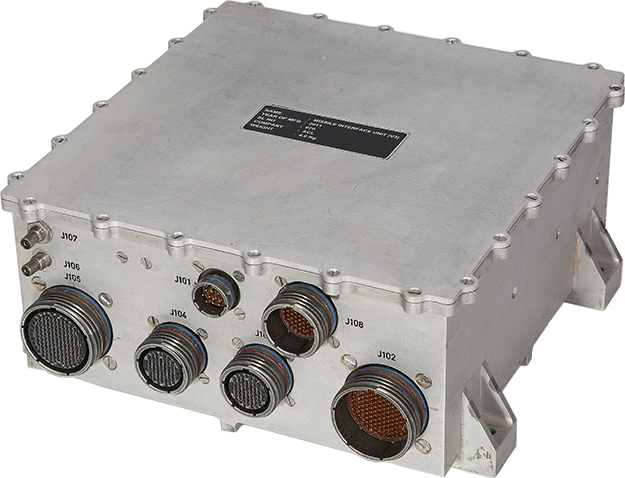

This system is available in two versions, one based on Intel 87C196 CPU and the other with Motorola’s 68332 Micro-Controller. The resources include 88 DIPs, 100 DOPs, 48 Analog Inputs, 12 Analog Outputs, 4 RS-422 channels & one MIL-STD-1553B interface.
Being used as data acquisition systems for National programmes.
Two versions
87C196 Microcontroller based 68332 Microcontroller based.
Interfaces
Digital inputs - 88 Nos. Active (opto isolated), Passive (opto isolated)
Digital outputs - 100 Nos.
Analog inputs - 48 Nos.
Analog outputs - 12 Nos.
MIL-STD-1553B-SERIAL bi-directional communication interface- 1 No.
Point to point serial communication RS-422 - 4 Nos.
