  MUX/DMUX card has BD32 port for Micro-controller/ Flash/ SRAM Testing / Debugging and a JTAG port for FPGA software Testing / Debugging.


• →
  Flash Memory is used for storing Application software.


• →
  SYNC,ERROR, STATUS indication through front panel Lamps.


• →
  Manchester Encoder/Decoder, SYNC generation, Frame Reconstruction, Mid-bit Sampling technique & CRC-16 techniques are used while Framing & Deframing.


• →
  Each MUX/DMUX unit operates on DC power supply of 28V ±4V with necessary EMI filtering and isolation.

→The 1300nm Multimode Optical Transceiver is used for transmitting and receiving multiplexed data. The maximum distance of transmission is 2 Km. A 850 nm Video Transmitter and Receiver Module is used for Unidirectional video Fiber communication. The maximum distance of transmission is 5.2 Km.

• →

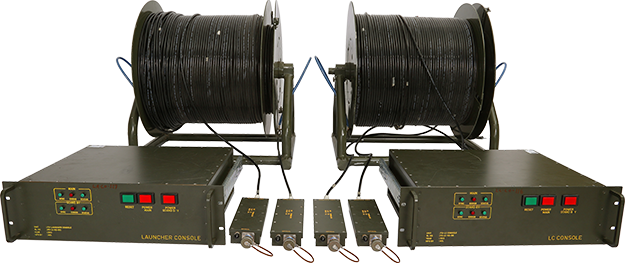

  Multimode four core 62.5/125µm Tactical Ground MIL grade cable is used as communication media between LC and Launcher Consoles. The first two Fiber cores are used for transmit and receive data,third Fiber core is used for video data transmission and the fourth one is spare.
