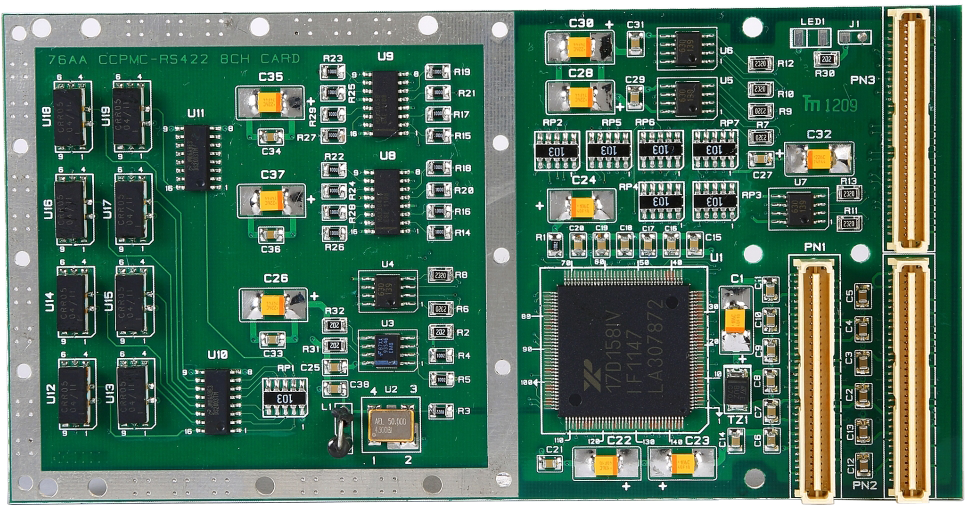

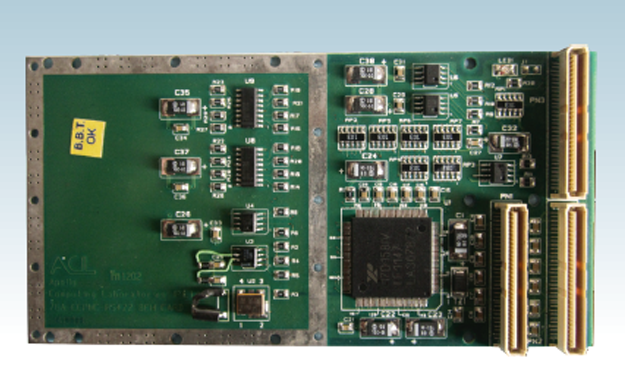

CCPMC 8 Channel RS-422 Card

Introduction

CCPMC RS-422 Card provides 8 channel RS-422 and 8 Discrete I/O lines. The RS-422 Receive lines are optically isolated and Discrete I/O's are Open/Close type by using Mechanical Relays.The CCPMC RS-422 Card conforms to the VITA 20-200x draft 1.15 CCPMC standard.The CCPMC RS-422 form factor (143.75mm x 74mm) uses only one CCPMC slot on the host and can easily be plugged onto any host processor (VME or otherwise) that supports CCPMC.

Specifications

Card : Comply with IEEE 1386.1 PMC Standard to serve as Mezzanine Board for a Power PC VME host conforming to IEEE 1101.2.
Cooling : Conduction-cooled as per VITA conduction Cooled PMC Standards.
Operating Temperature: -40°C to + 85°C.
Storage Temperature : -50°C to 100°C.

Functions

  • Eight Channels of RS422 Standard Serial I/O baud rate up to 6.5Mbps.
  • PCI Interface will support 8/16 / 32 write Cycle with Zero wait state.
  • Built In Test : Test Software / firmware will cover detailed Hardware testing.
  • Serial I/O : 8 channel RS-422 Serial port.
  • Software Programmable baud rate generator.
  • Digital I/O : 8 channel relay contacts open or closed type, Contact rating 5V @ 1 Amp.
  • I/O Connector: Serial I/O, Discrete I/O Lines routed to the PMC I/O Connector for utilisation through VME host connector
  • EEPROM : CCPMC RS-422 Card has a serial EEPROM of 2KB for configuration.
  • POWER : 5V @ < 1 Amps.
  • CCPMC- RS422 module is designed to fit on all air cooled PMC fitted host cards as per standards stipulated.
  • Components on a CCPMC RS-422 conforms to the envelope specifications as defined in IEEE P1386 common Mezzanine Card Specifications. The CCPMC RS-422 is of single width. All the standard mounting holes are provided.
  • The mandatory thermal interfaces are provided in the design of CCPMC- RS422 module.
