Industrial & Rugged Systems

Apollo Computing Laboratories (P) Ltd has been involved in the manufacturing of Industrial & Rugged Systems. ACL is offering a wide range of Industrial / Rugged Computers, Workstations, Servers, BOX PC's, Data Acquisition Systems and LCD Monitors.

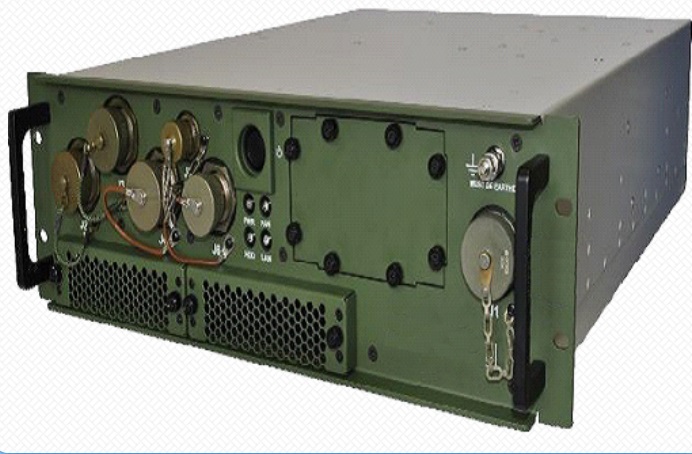

Rugged Computer System

Ordering Information:
For specific Configurations / Specifications of Rugged Computer system  Consult ACL for further details

Contact

Specifications

  • ✓
    CPU: Intel Core i3/i5/i7 Processor
  • ✓
    Memory: DDR3/DDR4 Expandable up to 32GB
  • ✓
    Storage: SATA 1 TB HDD
  • ✓
    Optical Drive: DVD R/W
  • ✓
    Graphics: Integrated / nVIDIA (Optional)
  • ✓
    Networking: 4xGbE LAN ,I/Os: 2xUSB 3.0, 4xUSB 2.0, 1xIPMI (on  RJ-45), 1XVGA/DVI, 1xPS/2 (KB/Mouse), 2xSerial Ports
  • ✓
    Power Supply: ATX 230VAC In With PFC
  • ✓
    Operating System: Windows/Linux
  • ✓
    Connectors: MIL Circular
  • ✓
    Height: 3U/4U
  • ✓
    Depth: 450/500/550 in mm
  • ✓
    Width: 19” Rack Mount
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E

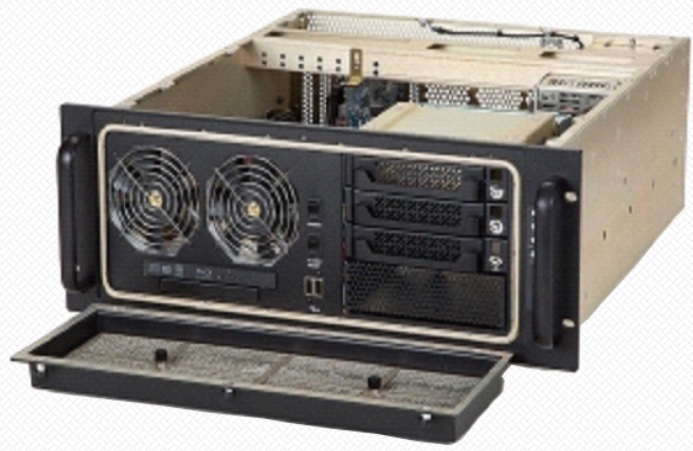

Rugged Workstation / Server

Ordering Information:
For specific Configurations / Specifications of​ Rugged Workstation / Server Consult ACL for further details

Contact

Specifications

  • ✓
    CPU: Intel XEON / i7 Processor
  • ✓
    Memory: ECC DDR3/DDR4 Expandable up to 256GB
  • ✓
    Storage: SATA 1TB HDD/SSD expandable Up to 8TB / Hot Swappable
  • ✓
    RAID: Support RAID 0, 1, 5, 6, 10 S/W or Raid Controller Card
  • ✓
    Optical Drive: DVD R/W
  • ✓
    Graphics: Integrated / nVIDIA Graphic Card
  • ✓
    Networking: 2xGbE LAN and 2x10GbE (ADD-ON Card)  I/Os:2xUSB 3.0, 2xUSB 2.0,1XVGA/DVI/HDMI, 1xPS/2 (KB/Mouse), 2xSerial ports
  • ✓
    Power Supply: Dual Redundant 230V AC In
  • ✓
    Operating System: Windows/Linux
  • ✓
    Cooling Fans: Hot Swappable Cooling Fans
  • ✓
    Connectors: MIL Circular
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E
  • ✓
    Height: 3U/4U/5U
  • ✓
    Depth: 450/500/550 in mm
  • ✓
    Width: 19” Rack Mount

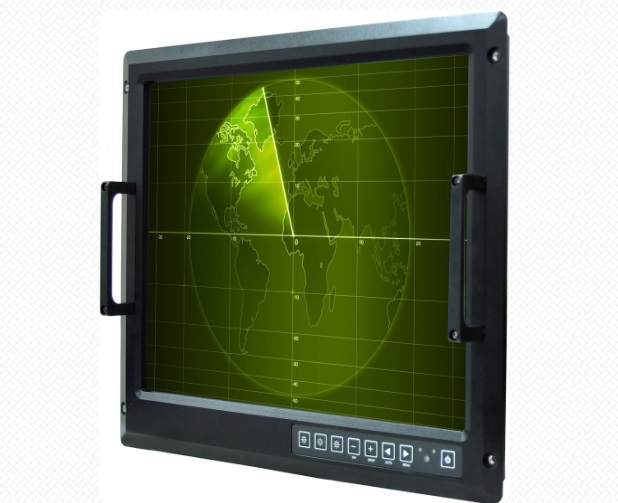

Rugged Display

Ordering Information:
For specific Configurations / Specifications of​​ Rugged Display  Consult ACL for further details

Contact

Overview

The Rugged Display has been designed to withstand harsh environments for Military and Industrial applications. The LCD Panels used in the unit must be viewable in daylight with high brightness and various sizes. These displays facilitate clear view and superior image quality.

Inputs VGA, DVI or HDMI and USB PAL/NTSC/C Video/Composite Video (Optional)
Touch Screen (Optional) 4/5 Wire Resistive Touch with USB Controller
OSD Controls Power, Menu, Up, Down, Source select
Power 9-36VDC
Mechanical Width: 19” Rack Mount / Wall Mount
Environmental As per JSS55555
EMI/EMC As per MIL-461E
Specification 15” LCD 17” LCD 19” LCD 21.3” LCD
Display Size (Diagonal) 15” 17” 19” 21.3”
Backlight Area LED LED LED LED/CCFL
Active Area H x V 304 x 228 338 x 270 376 x 301 422 x 338
Pixel Pitch in mm 0.297 x 0.297 0.264 x 0.264 0.294 x 0.294 0.165 x 0.165
Resolution 1024 x 768 1280 x 1024 1280 x 1024 1600 x 1200
Brightness in Cd/m20 250/400 350/600 350/650 350/80
Contrast Ratio (Typical) 700:1 800:1 1000:1 850:1
Viewing Angle H x V 85°/80° 80°/80° 85°/80° 85°/85°
Response Time (Typical) 8 m Sec 25 m Sec 20 m Sec 20 m Sec

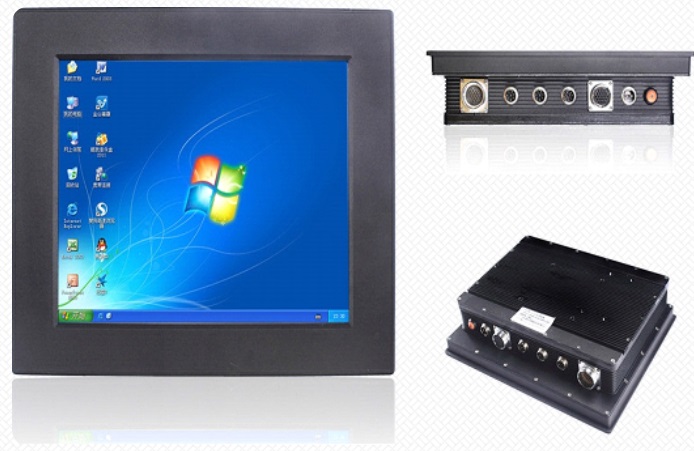

Rugged Panel PC

Ordering Information:
For specific Configurations / Specifications of​  Rugged Panel PC's Consult ACL for further details

Contact

Overview : The Rugged Panel PC is based on the Intel Core 2 Duo/Quad/i3/i5/i7 Processor. The product is designed for high-end computing with Fanless/Air-cooled in aluminum housing and fit into a wide variety of applications . The Rugged Series can offers All-in-One solutions for some of the most demanding users.

Specifications

  • →
    Display Size: 15”/17”/19”
  • →
    Touch Screen: 4/5 Wire Resistive Touch
  • →
    CPU: Intel Core 2Duo/Quad/i3/i5/i7 Processor
  • →
    Memory: 4GB/8GB DDR3 SODIMM
  • →
    Storage: 2.5” SATA 128GB/256GB/500GB/1TB SSD
  • →
    Graphics: Integrated
  • →
    Net Working: 2 x GbE LAN
  • →
    I/O': 4xUSB, 1xVGA, 1xPS/2, 2xSeial Ports, 8XDIO
  • →
    Power Supply: 230VAC / 9-36VDC In
  • →
    Operating System: Windows/Linux
  • →
    Connectors: MIL Circular
  • →
    Width: 19” Rack Mount / Wall Mount
  • →
    Height: 7U/8U/9U
  • →
    Depth: 100/150 in mm
  • →
    Environmental Specs: As per JSS55555
  • →
    EMI/EMC: As per MIL-STD-461E
  • →
    Ingress Protection: IP65 from Front side

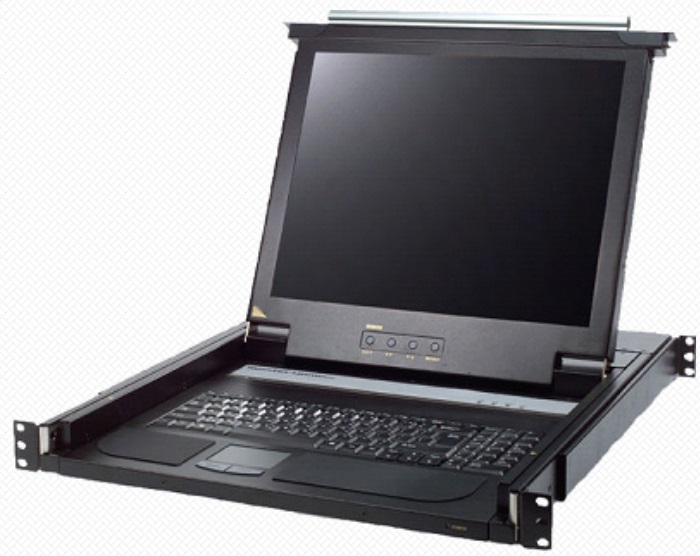

Industrial / Rugged KVM Console

Overview : The Rugged KVM Console has been designed to withstand harsh environments for Military and Industrial applications. The LCD Console offers Standard and high brightness options with various sizes. The Keyboard with pointing device is NEMA 4X certified and meeting IP67 standards to be resistant to dirt, debris and liquids.

Specifications

  • ✓
    Display Size:15”/17”/19”
  • ✓
    Keyboard: NEMA 4x USB Keyboard with Touchpad (Sealed and Washable)
  • ✓
    Inputs: VGA/DVI and USB Port
  • ✓
    Power Supply: 230VAC / 9-36VDC In
  • ✓
    Connectors: MIL Circular
  • ✓
    Width: 19” Rack Mount
  • ✓
    Height: 2U *
  • ✓
    Depth: 400/450 in mm
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E
  • ✓
    * Industrial Grade LCD Console in 1U with Operating Temperature: 0 to 50°C

Ordering Information:
For specific Configurations / Specifications of Industrial / Rugged KVM Console , Consult ACL for further details.

Contact

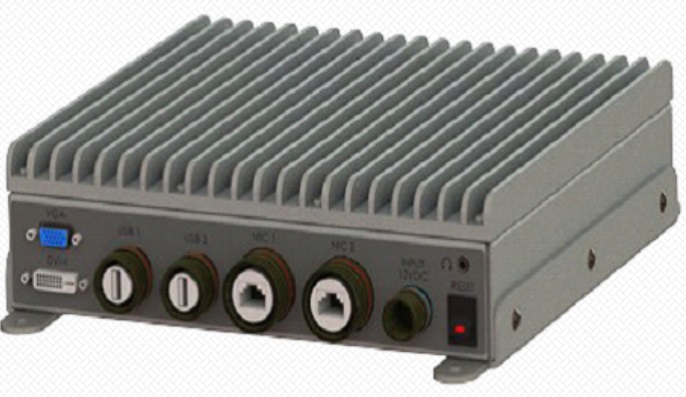

Rugged Stand Alone Box PC

Overview : The Rugged Box PC is ideal for use in harsh, wet and dusty environments. The product is ultra compact size with Fanless Design. Aluminum Profile with Fins, fit into a wide variety of applications and the unit is based on the Intel Core 2 Duo/Quad/i3/i5/i7 Processor

Specifications

  • ✓
    CPU: Intel Core Atom/Core2 Duo/ Quad/i3/i5/i7 Processor
  • ✓
    Memory: 4GB/8GB DDR3 SODIMM
  • ✓
    Storage: 2.5” SATA SSD / Compact Flash
  • ✓
    Graphics: Integrated
  • ✓
    Networking: 2 x GbE LAN
  • ✓
    I/Os: 2xUSB 3.0, 1XVGA 1xDVI, 1xPS/2, 2xSerial port & 4/8-DIO
  • ✓
    Power Supply: 9-36VDC In
  • ✓
    Operating System: Windows/Linux
  • ✓
    Connectors: MIL Circular
  • ✓
    Mechanical: Fanless Sealed and Customized
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E
  • ✓
    Ingress Protection: IP65

Ordering Information:
For specific Configurations / Specifications of Rugged BOX PC's , Consult ACL for further details.

Contact

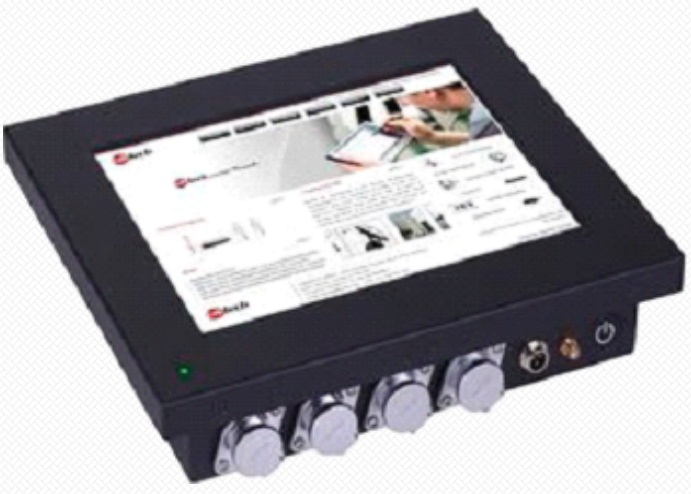

Rugged Tablet PC

Overview : The Ruggedized Tablet series provide wide range of LCD Panels. All of them do support high brightness, high quality and resolution. Intel® low power consumption CPU solution. The Tablet PC will support wide range of DC input voltage (9-36V DC). Also brings our customers flexibility in wireless solutions.

Ordering Information:
For specific Configurations / Specifications of ​Rugged Tablet PC Consult ACL for further details.

Contact

Specifications

  • ✓
    LCD: 6.5”/8.4”/10.4”/12.1”
  • ✓
    Resolution: 800x600 / 1024x768 (Optional for 12.1”)
  • ✓
    Brightness: 300 Cd/m2
  • ✓
    CPU: Intel Core Atom/Core2 Duo/ Quad/i3/i5/i7 Processor
  • ✓
    Memory: 4GB/8GB DDR3 SODIMM
  • ✓
    Storage: 2.5” SATA 64GB/128GB SSD / Compact Flash
  • ✓
    Graphics: Integrated
  • ✓
    Networking: 2 x GbE LAN
  • ✓
    I/Os: 2xUSB 3.0, 1xPS/2, 1xSerial ports & 4/8-DIO
  • ✓
    Power Supply: 9-36VDC In
  • ✓
    Operating System: Windows/Linux
  • ✓
    Connectors: MIL Circular
  • ✓
    Mechanical: Customized
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E
  • ✓
    Ingress Protection: IP65 from Front side

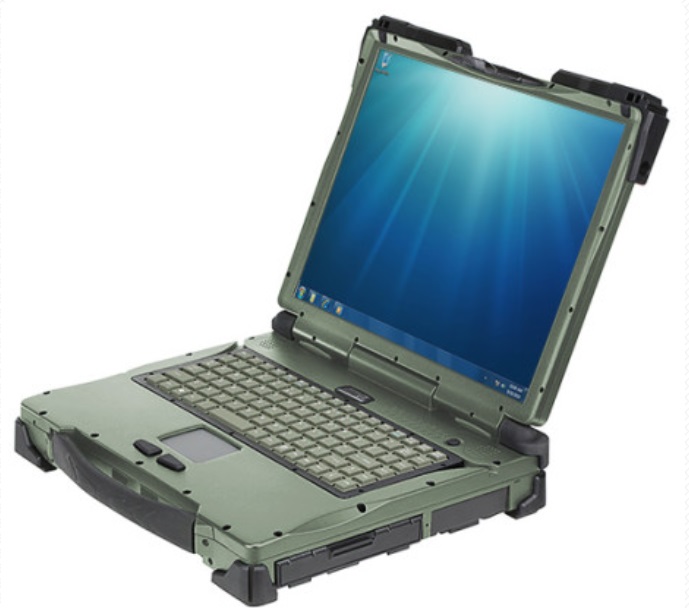

Rugged Notebook

Overview : The Rugged Notebook features an advanced clear display. With the latest Intel core i5/i7 Processor, rugged notebook was designed with high speed and efficiency. Intel® integrated Gfx graphic engine delivers amazing Graphics performance. Also brings our customers flexibility in wireless solutions. The Notebook offers a battery life of up to 3 hours on a single charge with full load.

Ordering Information:
For specific Configurations / Specifications of Rugged Notebook PC's , Consult ACL for further details.

Contact

Specifications

  • ✓
    LCD: 13.3” / 14" Wide Screen with LED Backlight and high brightness
  • ✓
    Resolution: 1280 x 800
  • ✓
    Brightness: 400 / 800 Cd/m2
  • ✓
    Keyboard: Waterproof silicone rubber keyboard with Touchpad
  • ✓
    CPU: 4th Generation Intel Core i3/i5/i7 Processor
  • ✓
    Memory: 4GB/8GB DDR3 SODIMM
  • ✓
    Storage: 128GB CFast drive for OS 2.5” SATA 256GB SSD for Data Backup (Optional)
  • ✓
    Media Bay: Super multi slim DVD RW
  • ✓
    Graphics: Integrated Gfx Graphic Engine
  • ✓
    Networking: 2 x GbE LAN
  • ✓
    I/Os: 2xUSB 3.0, 2xUSB 2.0, 1xSerial port
  • ✓
    Expansion Slot: 1 x Full-size mini PCI Express Mini Card with mSATA Internal Speaker and provision for Line in, Line out & Mic
  • ✓
    Power: AC-DC adapter (90W, 100-240V, 50/60Hz) Li-Ion smart battery (6800mAh) with min. 3 hrs backup
  • ✓
    Operating System: Windows/Linux
  • ✓
    Mechanical: Customized
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E

Rugged Notebook

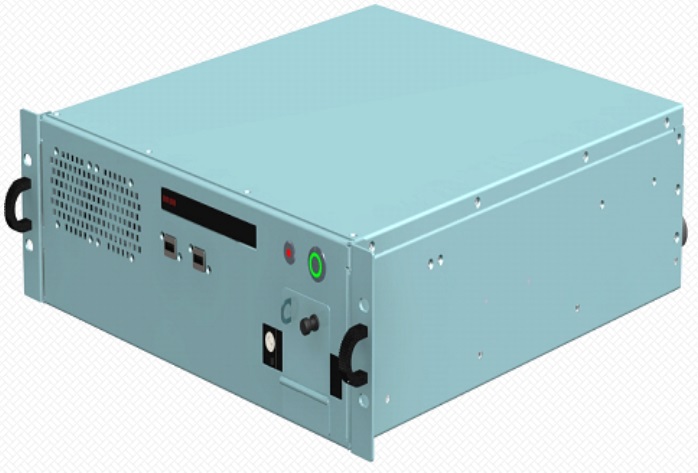

Overview : The Rugged Generic Data Acquisition system has built-in CPU with Atom Processor and 1GB on board RAM. DAQ has various Analog and Digital I/O’s. Also have CAN, RS-422, MIL-1553B Simulation, ARNIC-429. Power input 230VAC / 9-36VDC with Linux Operating System.

Ordering Information: For specific Configurations / Specifications of Rugged Generic Data Acquisition System , Consult ACL for further details.

Contact

Specifications

  • ✓
    CPU: Intel Core Atom N455 1.66GHz Processor
  • ✓
    Memory: 1GB DDR3 Onboard
  • ✓
    Storage: 128GB Compact Flash disk
  • ✓
    Digital Inputs: 88 Nos.
  • ✓
    Digital Outputs: 64 Nos.
  • ✓
    Analog Inputs: 80 Nos. 16 bit, 200 ksps, ±10V/20ma
  • ✓
    Analog Outputs: 68 Nos. ±10V (FS)16 bit-48 Nos., ±10V (FS)12 bit-8 Nos., 0V to +2.5V, 16bit-8 Nos.
  • ✓
    Multiple RT, BC & MT Simulation: 1 No. Supporting MIL-STD-1553 Simulator / Tester Providing Simultaneous 31RTs, BC & MT on One 1553B Bus.

  • ✓
  • ✓
    Single Function (BC/RT/MT) :MIL-STD-1553B Simulation: 1 No. ARNIC-429: 4 Transmitters, 8 Receivers RDCs: 2 Nos. of 16 Bit
  • ✓
    Absolute Encoder Interface: 2 Nos. of Type EnDat2.2
  • ✓
    CAN Controller: CAN Mater High Speed, 1 Mbit/sec, CAN 2.0

  • ✓
    Quadrature Encoder Interface :Hand Wheel: 2 Nos. of Type Incremental, Bidirectional
  • ✓
    COM Ports: 2xRS-232, 1xRS-422/485, 5xRS-422 Ports
  • ✓
    USB & Ethernet: 4 x USB, 1x GbE LAN
  • ✓
    Power Supply: 230VAC or 9-36VDC In
  • ✓
    Operating System: Linux
  • ✓
    Connectors: MIL Circular
  • ✓
    Environmental Specs: As per JSS55555
  • ✓
    EMI/EMC: As per MIL-STD-461E
  • ✓
    Mechanical: 19” Rack Mount

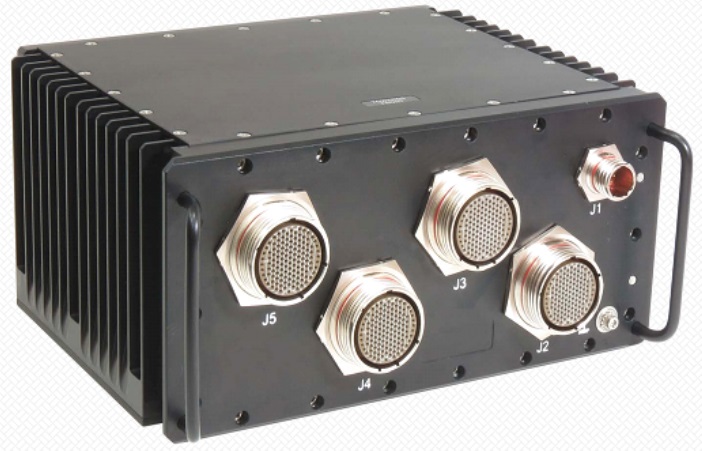

Rugged Ethernet Switch

Overview : The Rugged Generic Data Acquisition system has built-in CPU with Atom Processor and 1GB on board RAM. DAQ has various Analog and Digital I/O’s. Also have CAN, RS-422, MIL-1553B Simulation, ARNIC-429. Power input 230VAC / 9-36VDC with Linux Operating System.

Ordering Information:   For specific Configurations / Specifications of Rugged Ethernet Switch , Consult ACL for further details.

Contact

Specifications

  • ✓
    Rugged Aluminum Case Design
  • ✓
    8/16/24/32 Port 10/100 and 1000 Base-T Ethernet Switch
  • ✓
    Layer2 and Layer3 Management
  • ✓
    SNMP v1, v2c, v3, Web, Telnet, CLI Management
  • ✓
    IP Routing Functionality
  • ✓
    IEEE 802.1Q-based VLAN Support
  • ✓
    DHCP Client/Server Functions
  • ✓
    DNS Client Feature and Primary & Secondary DNS Server
  • ✓
    Port, Tag, IPv4 Type of Service, IPv4 / IPv6 Different Service
  • ✓
    Port-level Security via IEEE 802.1X Authentication
  • ✓
    14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port Transfer Rate
  • ✓
    RS-232 Console port via RJ-45 Type
  • ✓
    Power: 230VAC / 9-36VDC Input
  • ✓
    Connectors: MIL-STD Circular Connectors
  • ✓
    Mechanical: 19” Rack Mountable in 2U/3U/4U, Standalone and Console Mount
  • ✓
    Environment: As Per JSS55555
  • ✓
    EMI/EMC: As Per MIL-STD-461E/F
