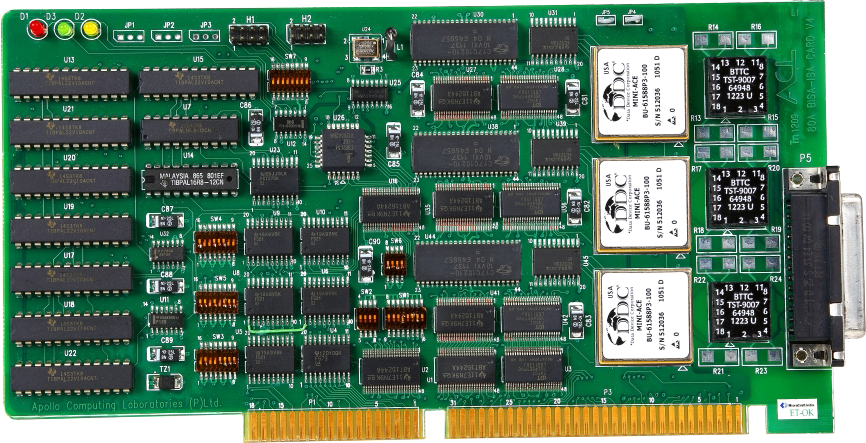

The APOORVA-1553B BCRTMT is a PCI bus based Two Node MIL-STD-1553B add-on card which can be hosted by an IBM-PC (PC-AT/386/486/ Pentium) PCI bus interface providing up to Two independently configurable buses. Each Bus provides simultaneously dual redundant BC/RT/MT or BC, RT & MT (based on ACL’s APOORVA-1553B Core) nodes conforming to MIL-STD-1553B Notice-2.

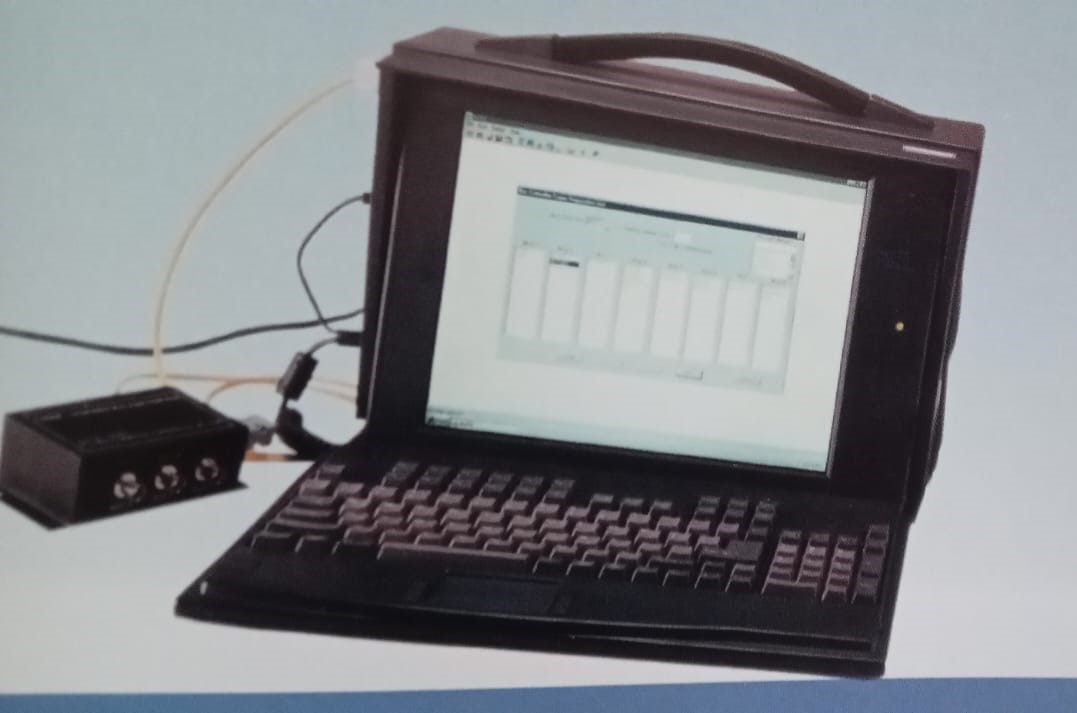

The Airborne unit is based on Intel-80486 CPU operating at 64Mhz speed. It communicates with external units through MIL-STD-1553B Channel. It has 4 MB of Flash and 2 MB of SRAM along with 32 discrete inputs/outputs, three serial RS-422 interfaces, 16 analog inputs & 8 analog outputs, 6 timers, and One RS-232 interface. The system is a self-contained unit and operates with DC input of 28V.

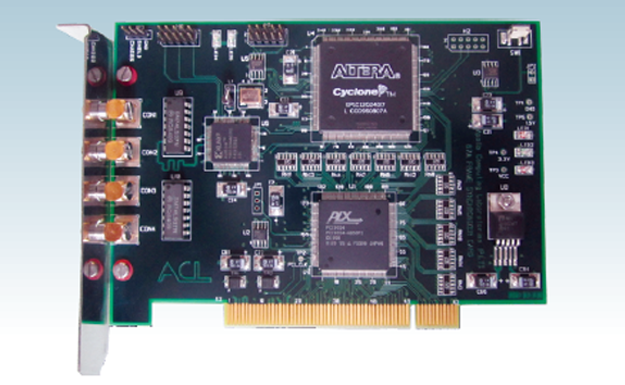

A single chip programmable very high bit rate Frame Synchronizer is a PCI based add-on card. The Card has been conceived to provide a ready-to-use solution in the domain of data acquisitions based on serial bit streams, more specifically for Telemetry Systems.Being used as data acquisition systems for National programmes.
MIU Test-Jig is used for the Functional testing of Missile Interface Unit. This Test Simulator Comprises of a standard 19” Rack fitted with an Industrial Computer, Relay box and linear Power Supply.

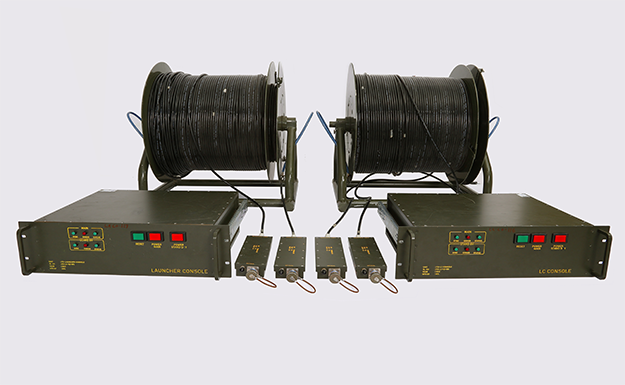

The LC-Launcher Fiber Optic Link is full duplex, redundant and high bandwidth Fiber optic interface between the Launch Controlling Station (LC) and the Launcher Interface Unit (LIU) with a separating distance of 800 meters. The LC-Launcher Fiber Optic Link consists of LC console, Launcher console and the connecting fiber optic cable system. Each of the consoles has main and standby links integrated into one unit.

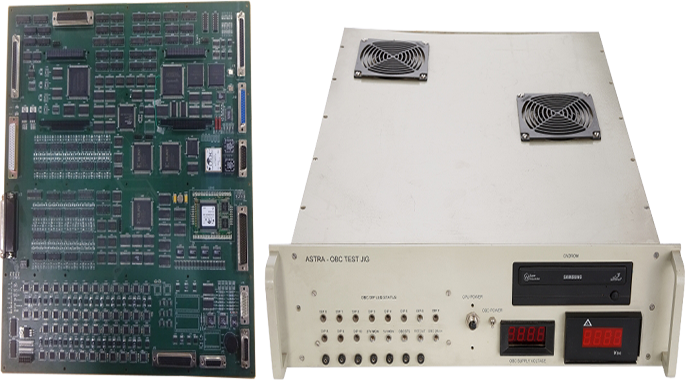

ACL’s RG-DAS is a Generic Data Acquisition System, which can be configured to specific application requirements.

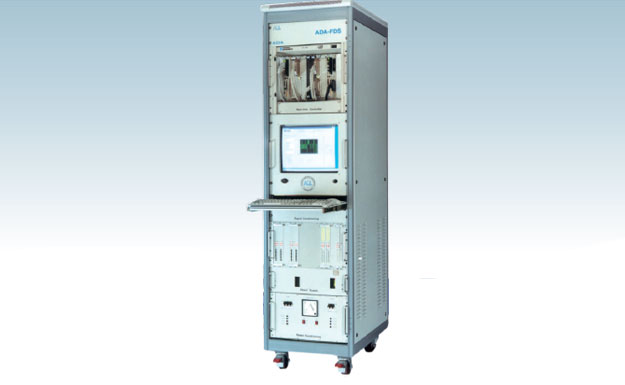

The RT-HILS provides the real-time hardware & software environment for accomplishing the dynamics of HILS. It is being used as Flight Dynamic simulator for LCA.
This Weapon Computer for LCA is built around Conduction Cooled Half ATR chassis with a variety of digital interfaces along with three MIL-STD-1553B buses, Open Systems Architecture & VME Backplane. Based on Industry standard MC68332 micro-controllers, the unit is integrated with High Current Relays & 3 banks of RF switch Matrix (0-1.6 GHz) for MIL-STD-1760 Weapons. Hot Standby Redundancy is provided.
This package is one of the critical avionic packages. The unit receives commands from onboard computer over 1553B bus and is responsible for switching relays, monitoring their status, sending command voltages to control systems, providing excitation supply to pressure transducers, conditioning received signal voltages and measuring parameters like system pressures and battery voltages.

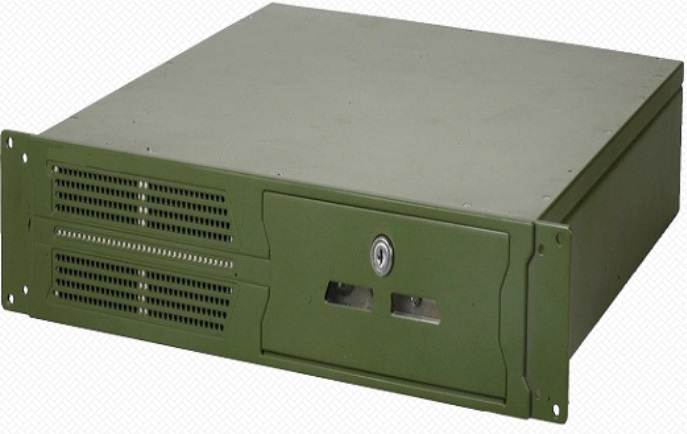

The Rugged Computer system is a 19” Rack Mountable with 3U/4U height. The system is based on latest 4th Generation i3/i5/i7 Processor and DDR3/DDR4 Memory, 4 Gigabit LAN Ports, 6 USB3.0&2.0 Ports.
The Rugged Generic Data Acquisition system has built-in CPU with Atom Processor and 1GB on board RAM. DAQ has various Analog and Digital I/O’s. Also have CAN, RS-422, MIL-1553B Simulation, ARNIC-429. Power input 230VAC / 9-36VDC with Linux Operating System.
The system is built around a large array of 588 Yagi antennas arranged in a circular partten driven by an array of 588 Transmit- receive modules generating a pulse power of 400 watts peak/module. The pulse waveforms are generated by a coherent signal generator based on DDS modules.
